Copper Wire Sizing for 200 Amp Service: Ensuring Safe and Efficient Electrical Installations

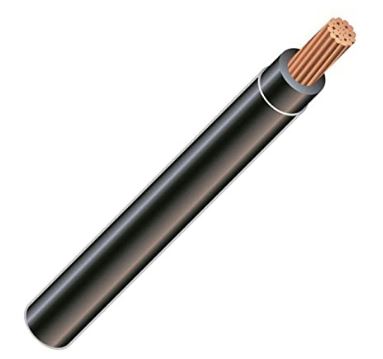

3/0 copper wire

When it comes to electrical installations, proper wire sizing isn't just a recommendation; it's a fundamental safety requirement. Inadequate wire size can lead to overheating, voltage drop, and even fire hazards. Proper wire sizing ensures that the electrical system can handle the current load without compromising safety.

The best copper wire for 200 amps is 3/0 AWG according to Nassaunationalcable. However, you can use 2/0 copper wire in some circumstances as they are rated from 195 Amps - 200 Amps.

Significance of 200 Amp Service

In both residential and commercial contexts, the demand for electrical power can vary widely. A 200 amp service is a common choice for those with moderate to high electrical demands. It provides the necessary power to accommodate a range of appliances and equipment.

Factors Affecting Copper Wire Sizing

Current-Carrying Capacity of Copper Wires

The ampacity of a wire refers to its ability to carry current without exceeding safe temperature limits. Wire gauge and insulation type significantly influence the ampacity of copper wires. It's imperative to select wires with the appropriate ampacity to prevent overheating and potential failures.

Voltage Drop Considerations

Voltage drop occurs as current travels through a wire, resulting in decreased voltage at the load end. Larger wire sizes minimize voltage drop, ensuring efficient power distribution and preventing equipment malfunction due to low voltage.

Ambient Temperature Effects on Wire Capacity

Ambient temperature plays a crucial role in determining a wire's current-carrying capacity. High temperatures reduce a wire's ampacity, necessitating larger wire sizes to handle the same current load safely. Wire ampacity values are adjusted according to the surrounding temperature.

Determining Copper Wire Size for 200 Amp Service

Calculating Load Demand

Determining the required wire size starts with calculating the total load demand of electrical appliances and devices that will be connected to the circuit. This helps ensure that the selected wire can handle the anticipated current.

Accounting for Diversity and Continuous Loads

Diversity factors account for the likelihood that all appliances won't operate simultaneously, reducing the overall current demand. Additionally, continuous loads, such as heating systems, require special considerations due to their prolonged operation.

Selecting Appropriate Wire Insulation Type

Different environments require different insulation types. Indoor, outdoor, and wet locations demand insulation that can withstand various conditions while maintaining safety.

Wire Insulation Applications
PVC General-purpose applications, such as hook-up wire, computer wire, and control wire
Semi-Rigid PVC (SRPVC) Motor lead wire, panel wiring, and varnish bake cycles
Irradiated PVC High-performance applications, such as aerospace and military applications
Polyethylene (PE) Motor lead wire, control wire, and instrumentation wire
Rulon Aircraft wire, elevator cable, and mining cable
Polypropylene (PP) High-temperature applications, such as automotive wiring and appliance wiring
Kynar Backplane wire, telecommunications wire, and computer wire
Tefzel (ETFE) Military and aerospace applications, such as missile wire and satellite cable
Halar (ECTFE) High-temperature applications, such as aircraft wiring and engine wire
Teflon (FEP) High-performance applications, such as aerospace and military applications
Teflon (TFE) High-temperature applications, such as aerospace and military applications
Teflon (PFA) High-performance applications, such as aerospace and military applications
Thermoplastic Rubber (TPR) Automotive wiring, appliance wiring, and industrial wire
Chlorosulfonated Polyethylene (CSPE) Motor lead wire, panel wiring, and jacketing material
Silicone High-temperature applications, such as automotive wiring and appliance wiring

Ampacity Ratings and Wire Gauge Selection

Understanding Ampacity Ratings

Ampacity ratings specify the maximum current a wire can safely carry without overheating. These ratings ensure that the wire won't exceed its thermal limits during operation.

Choosing Wire Gauge

Selecting the right wire gauge involves a balance between ampacity and voltage drop considerations. While larger wire gauges offer higher ampacity, they also reduce voltage drop and minimize energy losses.

Use of Online Calculators and Software

The complexity of wire sizing calculations can be eased with the use of online calculators and software. These tools take into account multiple factors to provide accurate and efficient wire size recommendations.

Voltage Drop Calculation

Definition and Significance of Voltage Drop

Voltage drop is the reduction in voltage along the length of a wire due to the resistance of the wire itself. Excessive voltage drop can lead to poor device performance and even damage.

NEC-Recommended Voltage Drop Limits

The NEC provides recommended voltage drop limits for various applications. Adhering to these limits ensures that devices receive the required voltage for proper operation.

NEC 210.19(A)(1) provides an Informational Note (Note No. 4) that restricts the voltage drop at the farthest outlet of a load to 3% of the supplied voltage. A 2% drop is permitted in the feeder.

Voltage Drop Calculation Methods and Formulas

Voltage drop calculations use Ohm's law and specific formulas to estimate voltage drop accurately. These calculations play a vital role in designing systems with optimal efficiency.

Practical Installation Considerations

Ensuring Proper Wire Protection and Conduit Sizing

Wires must be adequately protected to prevent damage and ensure longevity. Proper conduit sizing ensures easy installation and future maintenance.

Dealing with Conduit Fill Requirements

Conduit fill requirements regulate the maximum number of conductors allowed in a conduit. Adhering to these requirements prevents overheating and interference between wires.

Addressing Issues Related to Wire Bundling and Derating

When wires are bundled together, they generate more heat due to reduced airflow. This requires derating, which involves reducing the ampacity of the wires to prevent overheating.

Common Copper Wire Sizes for 200 Amp Service

Examples of Commonly Used Wire Gauges (AWG)

For 200 amp service, common wire gauges include 2/0 AWG and 3/0 AWG. These gauges provide the necessary ampacity for such high-power installations.

Corresponding Ampacity Ratings and Voltage Drop Calculations

Different wire gauges come with distinct ampacity ratings and voltage drop characteristics. These ratings determine the suitability of the wire for specific applications.

Practical Scenarios and Applications for Different Wire Sizes

The choice of wire gauge should align with the intended use and potential load scenarios. Understanding which gauge suits particular applications ensures an optimized electrical system.

Safety and Compliance

Importance of Following Safety Guidelines

Safety should always be a priority during any electrical installation. Proper wire sizing, installation, and protection significantly contribute to preventing accidents and hazards.

Inspection and Testing Procedures

After wire sizing and installation, thorough inspections and testing should be conducted to verify the integrity and safety of the electrical system. This step ensures that the system functions as intended.

Compliance with Local Codes and Regulations

Adherence to local electrical codes and regulations is paramount to legality and safety. These codes are designed to standardize and regulate electrical installations for the protection of both occupants and property.

X. Conclusion

Determining the appropriate copper wire size for 200 amp service involves a thorough understanding of electricity.
