Factors Influencing Wire Gauge Choice

Several factors play into choosing the right wire gauge:

• Length of Wiring: Longer distances require thicker wires to minimize resistance.
• Type of Insulation and Conductor Material: Consider the environment and conductor materials for optimal safety and performance.
• Voltage Drop Considerations: Prevent excessive voltage drop by selecting an appropriate wire gauge.

Optimal Wire Gauge for 50 Amp 220v

Selecting the optimal wire gauge ensures a reliable connection:

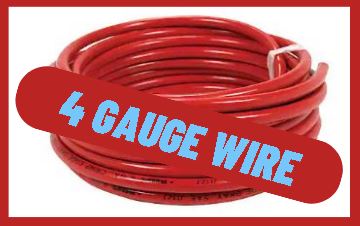

• Recommended Gauges: Based on our research, a 6-gauge copper wire or 4-gauge aluminum wire is suitable for most 50 amp setups.
• Misconceptions: Avoid common misconceptions about wire gauge – thicker isn't always better. The right gauge is about efficiency and safety.
• Safety Implications: Incorrect wire gauge can lead to overheating, potential hazards, and damage to your camper's electrical components.

Installation Guidelines

Follow these steps for a successful 50 amp 220v camper wiring:

1. Gather Materials: Prepare wire, connectors, conduit, and tools.
2. Turn Off Power: Always disconnect power before working on electrical systems.
3. Calculate Wire Length: Measure the distance and choose your wire gauge accordingly.
4. Strip Wires: Strip the insulation from wire ends for proper connections.
5. Connect Wires: Use appropriate connectors and secure connections tightly.
6. Test and Inspect: Test the connection and inspect for any loose ends or exposed wires.

Benefits of Proper Wiring: Proper wiring brings several advantages to your camper life:

• Reliable Power Supply: Enjoy uninterrupted power for appliances, ensuring a comfortable camping experience.
• Hazard Prevention: Avoid electrical hazards caused by improper wiring that can lead to fires or damage.
• Longevity of Components: Ensure your electrical components have a longer lifespan by providing them with the right amount of power.

Ampacity of a 1 AWG Copper Conductor

Insulation Type	Temperature Rating	Ampacity
TW	60°C	110 A
THW	75°C	130 A
THHN	90°C	145 A

Source: schneider-electric.com

What Happens if You Use The Wrong Wire Size for 50 Amp 220V?

Using the wrong wire size for a 50 amp 220V electrical setup can lead to various safety, performance, and operational issues. Here's what can happen if you use an incorrect wire size:

1. Overheating and Fire Hazard: If the wire gauge is too small for the current load, it can lead to overheating of the wire due to excessive resistance. Over time, this can result in melted insulation, exposed wires, and potentially cause a fire hazard.

2. Voltage Drop: Inadequate wire size can lead to significant voltage drop, causing a decrease in the voltage reaching your appliances. This can result in reduced efficiency and functionality of your electrical devices, especially if they require consistent and stable voltage levels.

3. Reduced Performance: Appliances and equipment may not operate at their optimal performance levels due to insufficient power supply. Motors may run slower, lights might dim, and devices may not function as intended.

4. Potential Equipment Damage: Using the wrong wire size can place strain on your electrical components and devices, potentially leading to their premature failure. Sensitive electronics may be particularly vulnerable to fluctuations in voltage and current.

5. Safety Risks: Incorrect wire sizing can create safety risks for both your camper and its occupants. Overheating wires could cause electrical shocks, damage to appliances, or even injury to individuals nearby.

6. Code Violations: In many places, electrical codes and regulations dictate specific wire sizes for certain applications. Using an incorrect wire size can result in violations of these codes, leading to legal and insurance issues.

7. Increased Costs: While you might initially save money by using a smaller wire, the costs associated with repairing or replacing damaged appliances, wiring, and other components can far outweigh those initial savings.

8. Unreliable Power Supply: An undersized wire might not be able to handle the demands of your camper's electrical appliances, leading to frequent tripping of circuit breakers, interruptions in power supply, and a frustrating camping experience.
