What size wire for 60 amps? Full Guide
You should use No. 4 AWG size for a 60 amp wire. This is the best size wire for 60 amps and 50 amps. However, with a 60 amp wire, you can go sometimes use a 6 gauge wire if it is only a short run. Use THHN or RHW type insulation.

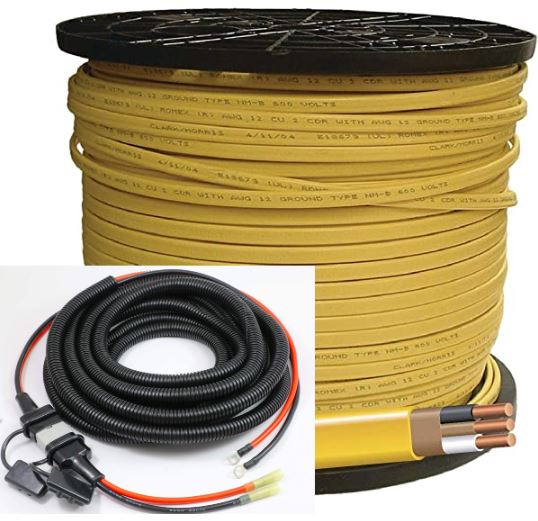

If you are in the market for a wire that can handle 60 amps, then i would suggest this 4-gauge wire from GEARIT on Amazon. You will receive 50 feet each of black and red Copper Clad Aluminum CCA wire.
What Is the Correct 60-Amp Breaker Wire Size?
Use a 4 AWG wire for a 60 amp breaker. Wire gauge is very important. Resistance will trigger the wire to get too hot when the optimum current level for which the breaker is ranked passes through it if you try to use wire that's too small of amperage. If that happens, a fire might be started and you really do not want that to happen. On the other hand, a heavy-gauge wire is tough to deal with, hard to link/connect and have a high cost. Be sure not to use too much of an oversized wire.
If you plan on purchasing a 60 amp breaker, take a look at this breaker on amazon. This is one of the only products i have seen with a 5 star rating on amazon.
What size wire should I use for a 60 amp subpanel?
You can get away with 6 AWG when you have a short run of wire, however, due to voltage drop, if you ever decide you want to go more than 100 feet then a 4 AWG is the size you should choose.
What is ampacity?
Ampacity is defined as the total amount of current that a cable or wire can carry safely. You can think of ampacity as the maximum amount of current that can flow for a given wire size with temperature and voltage drop at the limits.
Do not judge wire size by length alone. The longer the run, the greater the distance between your panel and subpanel, or load location to subpanel, will require larger conductors. You have to take ampacity serious and choose wire size accordingly in order to avoid larger voltage drops.
The ampacity tables do not cover every possible combination of wire, temperature, and voltage drop. The values shown are for clean, dry conditions. They assume the conductor is properly supported at intervals not exceeding 30 ft (9 m). They also assume that the insulation on any non-CMP cable remains intact and free from damage or defects that would render it liable to failure under maximum load conditions.
What is gauge?
It is very important to understand what gauge means: It is not the size of the conductor (i.e., its physical dimensions). Rather, it reflects only the amount of electrical current that can flow through it safely under certain conditions, conditions such as operating temperature, operating voltage and the type of insulation.
Most electrical conductors are insulated in some manner to prevent an electric current from passing through them directly. An insulator must be used because the flow of electric current tends to heat up the conductor as it flows through, which can melt or damage it. Since the size of a material's cross-section is often important in determining how well it performs this function (i.e., how much current can safely pass through), we have a word for that: "gauge."
WIRE SIZE AMPACITY CHART
|14-gauge wire||15 amps|
|12-gauge wire||20 amps|
|10-gauge wire||30 amps|
|8-gauge wire||40 amps|
|6-gauge wire||55 amps|
|4-gauge wire||70 amps|
|3-gauge wire||85 amps|
|2-gauge wire||95 amps|
Stay updated with our newsletter
60 amp wire size
In order to use 60 amps, a 4 gauge wire is required. But, if you plan on running the wire over a short distances then you can use one of 6 AWG.
We all use appliances and electronics everyday. Here are some of the most common electronics and appliances that we use daily along with their wattage and amperage.
|Domestic Portable Appliance||Amps Used||Watts Used|
|Mobile phone charger||<0.5||<12|
|Laptop||<0.5||65 - 100|
|Satellite TV box||<0.5||30|
|Desk lamp (with 60 W lamp)||<0.5||60|
|Hair straighteners||<0.5||60 - 100|
|Television 42" HD||0.5||120|
Copper vs Aluminum Wires
|Table showing the different ratings of different types of wires.|
|Rating||Copper conductor||Aluminum conductor|
|60 amp||#4 AWG||#3 AWG|
|50 amp||#6 AWG||#4 AWG|
|40 amp||#8 AWG||#6 AWG|
|30 amp||#10 AWG||#10 AWG|
|20 amp||#12 AWG||#12 AWG|
Some of the best 60 Amp Rv Plugs for rv and wires you can buy today
These are some of the best bang for buck you will find when it comes to wires and accessories for 60 amps.
Camco 30' Heavy-Duty Outdoor 60-Amp and 50-amp Extension Cord

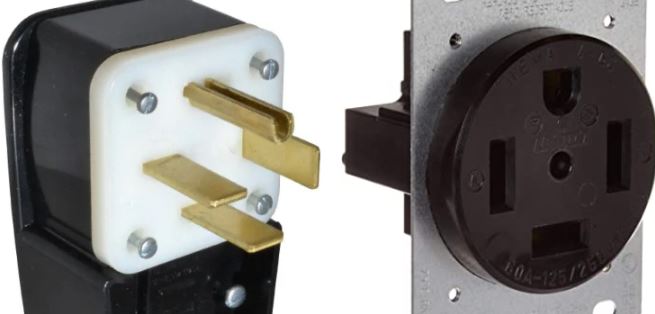

Talon LGP1S 60-Amp and 50-amp Enclosed (For Outdoors)
Camco PowerGrip Replacement Plug
ROCKRIX 4 Gauge 25ft Black and 25ft RED
This extension cord is fit for both 60 amp and 50 amp. It is 30 feet in length and is perfect for the 60 amp or 50 amp job you will be taking on. An extension cord is a great addition to any home or vehicle and this one is a great all-rounder.
A receptacle that can handle the elements is great. This one has been getting many positive reviews and seems to be a very good buy.
Transform your rv plug into a durable and safe PowerGrip Cord. It has high conductivity and a sleek, compact design. Very easy to install.
Being able to withstand temperatures-104°F up to +221°F. This wire was design to meet the ASTM standards. It has a PVC Jacket which gives it the ability to withstand such temperatures.
50 amp vs 60 amp wire size
The wire needed for both of these wires are practically the same. They can both use 4 AWG. The differences are that the 50 amp wire is THHN and the 60 amp will be THWN. I believe the main difference will be in price. The wire size is generally governed by the NEC (national electric code).
The most common sizes of electrical cable are collectively referred to as "NEMA wire sizing" or NEMA sizes. There are about four dozen 'standard' types of wiring material, divided among different categories. That information can now be found on Wikipedia, but for your convenience, here's a brief overview of the 7 most commonly used:Here is a list of the 9 different categories of wires:
- Armored Cable
- Conductor Wires (AWG)
- Flexible Cords
Also called "Schedule 80" or "Ovally", this is a conduit that uses an oval shape to provide the internal volume of the piping. These are most commonly used for power and lighting circuits.
Normally a copper clad steel wire, this is the most common type of wiring found in residential and commercial buildings. This is also referred to as "Type THHN" or "THWN". It has a thin poly-vinyl outer layer with a thick high-density black matrix armor (rubber). It is generally rated between 600v and 1000v d.c., but can be more depending on it's application. Similar to the way that there are different types of conduit, such as rigid metal and flexible metal, there are two types of THW: Standard and Loose tube (armored).
This category covers larger type wires, usually intended for underground placement. Usually grouped along with other designations so that it reads something like this: THHN/THWN or THW/THWN-2 etc.
Designates American Wire Gauge size, which is used as a standardized unit of measure for electrical conductors. This is the American standard, so to speak. It is used in North America and Japan. The lower the gauge number, the larger the AWG and thus its diameter.
Sometimes referred to as "armored" cable depending on it's application. Similar to the way that there are different types of conduit, such as rigid metal and flexible metal, there are two types of THW: Standard and Loose tube (armored).3) Romex: Known commercially as " UF-B Wiring ." This category includes a variety of cables used for residential wiring applications. The most common type used for home network wiring is RG-6 .
Rubber covered wiring commonly used in household appliances such as vacuum cleaners and lawn mowers.
This is becoming obsolete because of its limited bandwidth capabilities (200MHz). It also has a relatively high signal attenuation due to plain wire and 4-pairs in the cable, as opposed to 8-pairs of RG-59/U used in analog TV coaxial cable line which has less attenuation. As such, it was always better to run a dedicated line for each device or if that was not possible, then to power the devices via an APC or Powerline. Nevertheless, Cat-5 remains popular if you need to plug into a network hub that only has ethernet ports and does not support wireless connections.
This is intended to eventually replace Cat-5 , but so far this transition has stalled. It doesn't have all of the limitations of Cat-5 (e.g., it can go up to 500MHz) but there are still relatively few deployments in which it is used over fiber optic lines or RG-59/U coaxial cables because its increase in bandwidth comes at great cost to long distance transmission distances vs. Cat-5 and the expense of installing Cat-6 cabling compared to using Cat-5.
Known commercially as "NMD", it consists of a black rubber outer sheath with copper conductors (or aluminum if you are fortunate to find some) that are twisted. It is only rated up to 150 volts, so be careful not to confuse this with the other types listed on this list. Unless you're going to be strictly using a system that will not exceed 150 volts, then this is not the best choice for you.
Using wrong wire size for your breaker.
There are so many different things that can happen when you use the wrong wire size for your breaker. If you use a wire size that is too big for your 60 amp breaker, not much will happen except having to pay a high price for said wire. On the other hand, if you use too much of a small wire for your 60 amp breaker, then there are so many things that can go wrong.
Knowing what gauge wire is right for your next project is crucial. Hopefully you have done the necessary research before taking on any type of DIY or hired a professional. Above i went over all you need to know about using 60 amps.
