200 Amp Panels: The Backbone of Your Electrical Power Supply
One key component in a building or home is the electrical panel, which is responsible for distributing electricity throughout. If you've ever wondered what a 200 amp panel is, you're in the right place. In this post, I will go over what a 200 amp panel is, why it is important, and everything on how to know if you really do need one.
What is an Electrical Panel?
An electrical panel, also known as a breaker box or distribution board, is a metal box that contains circuit breakers. These breakers are designed to trip and cut off the flow of electricity when an overload or short circuit occurs, preventing damage to your electrical system or appliances. The panel receives electricity from the utility company or generator and distributes it to the various circuits in your building.
Amperage, also known as "amps," is a unit of measurement that describes the amount of electrical current flowing through a circuit. The higher the amperage, the more electrical current the circuit can handle. A 200 amp panel is designed to handle up to 200 amps of electrical current.
What is a 200 Amp Panel?

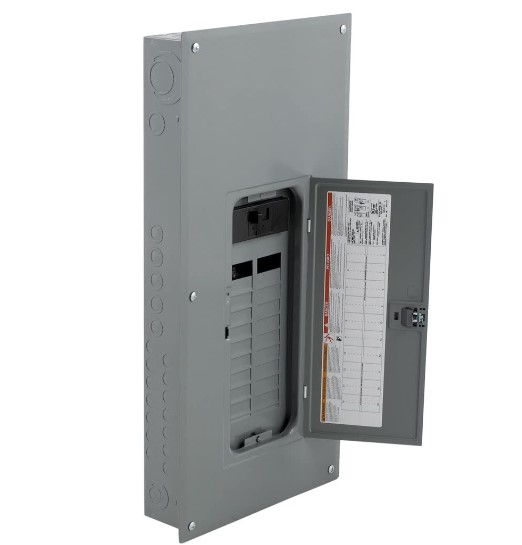

A 200 amp panel is an electrical panel that is designed to handle up to 200 amps of electrical current. It is typically used in larger homes or commercial buildings that require a lot of electrical power. A 200 amp panel is more powerful than a 100 amp panel, which is typically found in smaller homes.
What exactly does a 200 amp service mean in the context of electrical systems?
Let's take a closer look.
A 200 amp service refers to the maximum amount of electrical current that can flow through the main electrical service entrance into a residential or commercial building.
This rating is determined by the capacity of the service entrance equipment, which includes the main breaker, service panel, meter base, and associated wiring.
The rating of the service entrance equipment is important because it determines how much electricity the building can handle at any given time.
A 200 amp service is commonly used for mid-size to larger homes and small commercial buildings.
It provides a higher level of electrical capacity than smaller services, such as 100 or 150 amps, and can accommodate more electrical devices and appliances without overloading the electrical system.
Benefits of a 200 Amp Panel
Upgrading to a 200 amp panel offers several benefits. First and foremost, it provides better electrical performance, allowing you to power more appliances and devices without overloading your system. It can also increase the value of your home or business, as it's considered a desirable feature by potential buyers or tenants. Additionally, a 200 amp panel can improve the safety of your electrical system, reducing the risk of electrical fires or shocks.
- Increased electrical capacity to accommodate more devices and appliances
- Reduced risk of electrical overloading and safety hazards
- Ability to meet the electrical needs of a growing family or business
- Increased property value and marketability
- Ability to support future electrical upgrades and technology advancements
How to Know If You Need a 200 Amp Panel
Determining if you need a 200 amp panel depends on several factors. If you're experiencing frequent electrical issues, such as tripping breakers or dimming lights, it may be a sign that your current panel is overloaded and struggling to keep up with demand. Additionally, if you're planning to add new appliances or electrical devices to your home or business, you may need a 200 amp panel to handle the increased power requirements.
Common Misconceptions About 200 Amp Panels
There are several misconceptions about 200 amp panels that are important to address. One is the cost - many people assume that upgrading to a 200 amp panel is expensive, but the actual cost can vary depending on factors such as your location, the size of your building, and the complexity of the installation. Another misconception is that installing a 200 amp panel is a difficult or time-consuming process, but it can typically be completed in a day or two by a licensed electrician.
Upgrading to a 200 Amp Panel
If you've determined that you need a 200 amp panel, the next step is to hire a licensed electrician to install it. They will typically need to obtain permits from your local government and follow specific code requirements to ensure that the installation is safe and up to code. The cost of the installation will vary depending on your location and the complexity of the job.
Here is a table with information on different load centers and interlock kits that can be used with Cutler Hammer BR SERIES 150 and 200 amp panels:
|Generator Interlock Kit Compatible with Cutler Hammer BR SERIES 150 and 200 amp Panels, Generator Horizontal Electrical Interlock Kit, 1 1/4 - 1 7/16 inches Spacing Between Main and Branch Breaker
||4.8 out of 5 stars
|Square D - HOM4080M200PCVP 200A VALU PK Load Center
||4.4 out of 5 stars
|Square D - HOM3060M200PCVP 200 Amp 30-Space 60-Circuit Indoor Main Breaker Load Center with Cover
||4.6 out of 5 stars
|Square D - HOM816M200PFTRB Square D Convertible Mains (Breaker) Load Center, 120/240 Vac, 200 A, 1 Phases, 22000 Air Interrupt
||4.6 out of 5 stars
|Schneider Electric HOM4080M200PQCVP Homeline 200 Amp 40-Space 80-Circuit Indoor Main Breaker Qwik-Grip Plug-On Neutral Load Center with Cover-Value Pack, 4 Count
||4.6 out of 5 stars
|SIEMENS SIEGF224NR SIE GF224NR 2P 240V 200A Sfty SW, Black
||3.8 out of 5 stars
|Siemens S4260B3200 200-Amp Indoor Main Breaker 42 Space, 60 Circuit 3-Phase Load Center, Color
||3.5 out of 5 stars
|Siemens SN4060B1200 SN Series 200 Amp 40-Space 60-Circuit Main Breaker Plug-On Neutral Load Center Indoor
||4.0 out of 5 stars
|Siemens PNW0816B1200TC PN Series 200 Amp 8-Space 16-Circuit Main Breaker Plug-On Neutral Trailer Panel Outdoor with Copper Bus, Grey
||4.5 out of 5 stars
|Square D - QO1816M200FTRB - Load Center-200a
||4.1 out of 5 stars
|Square D Load Center, Main Lug, Convertible, 225 Amps, 120/240VAC Voltage, Number of Spaces: 42 - QO142L225G
The differences between 100, 150, and 200 amp services
The main difference between 100, 150, and 200 amp services is the amount of electrical current they can handle. A 100 amp service is typically used in smaller homes with less electrical demand, while a 150 amp service may be used in medium-sized homes or smaller commercial buildings. A 200 amp service is typically used in larger homes and small commercial buildings.
Here is a table summarizing the main differences between these three service sizes:
||Maximum electrical current
||Small homes with low electrical demand
||Medium-sized homes or small commercial buildings
||Larger homes and small commercial buildings
How to determine the appropriate service size for a building
To determine the appropriate service size for a building, a licensed electrician will typically perform a load calculation. This involves determining the electrical demand of all devices and appliances in the building and calculating the total amperage required to power them.
Factors that may affect the appropriate service size for a building include:
- Size of the building
- Number of occupants
- Types and number of devices and appliances
- Lighting requirements
- HVAC systems
- Building code requirements
Electrical code requirements for service entrance equipment
Service entrance equipment, including the main breaker, meter base, and associated wiring, must comply with electrical code requirements. These requirements may vary depending on the specific jurisdiction, but common requirements include:
- Use of approved materials and equipment
- Proper grounding and bonding of the electrical system
- Adequate ventilation and clearances for equipment
- Proper labeling of equipment
- Compliance with local building codes and regulations
Common issues with electrical systems and how to troubleshoot them:
Electrical systems can experience a range of issues, from minor to serious. Some common issues with electrical systems include:
- Circuit overloads: This occurs when too many electrical devices are drawing power from a single circuit, causing the circuit to trip. The solution is to redistribute the devices on different circuits or install additional circuits.
- Electrical surges: This occurs when a sudden increase in voltage occurs in the electrical system, causing damage to electronics and appliances. The solution is to install surge protectors to protect devices from voltage spikes.
- Ground faults: This occurs when electrical current flows through a path other than the intended path, such as through a person. This can cause electrical shock and fire hazards. The solution is to install ground fault circuit interrupters (GFCIs) in areas where there is a risk of electrical shock, such as in bathrooms and kitchens.
- Electrical noise: This occurs when unwanted electrical signals interfere with the normal operation of electronics and appliances. The solution is to install filters to reduce electrical noise.
When troubleshooting electrical issues, it is important to always follow proper safety procedures and consult a licensed electrician if necessary.
Safety considerations when working with electrical systems:
Working with electrical systems can be dangerous and requires proper safety precautions. Some key safety considerations when working with electrical systems include:
- Always turn off power to the circuit or device before working on it.
- Use insulated tools and wear appropriate personal protective equipment, such as gloves and safety glasses.
- Follow proper grounding and bonding procedures.
- Keep electrical panels and service entrance equipment free from obstructions.
- Hire a licensed electrician for any electrical work that is beyond your level of expertise.
Energy efficiency tips for electrical systems:
Electrical systems can be a significant source of energy consumption in a building. Some energy efficiency tips for electrical systems include:
- Use energy-efficient light bulbs, such as LED bulbs, which use less energy and last longer than traditional incandescent bulbs.
- Install programmable thermostats to control heating and cooling systems and reduce energy consumption when the building is unoccupied.
- Install motion sensors and timers for lighting to reduce energy waste when areas of the building are unoccupied.
- Replace old appliances with Energy Star-rated models, which are designed to be more energy efficient.
- Install insulation to reduce heating and cooling losses and reduce energy consumption.
