Why Would the 200 Amp Breaker Trip?

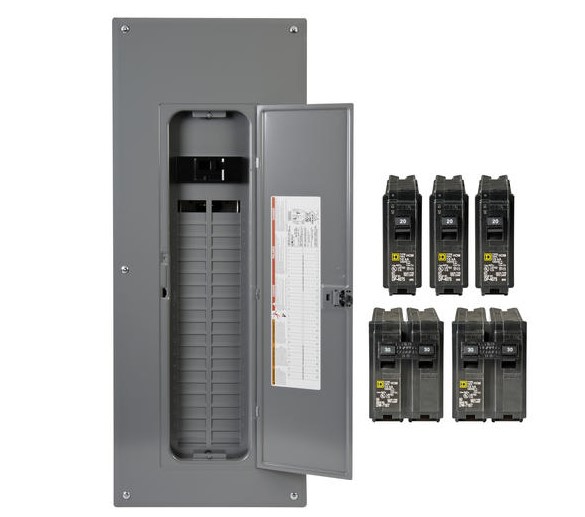

200 amp breaker panel

Are you experiencing a tripped 200 amp breaker? Not sure what could be causing it? A tripped breaker can be caused by several different factors, and it's important to identify the cause in order to prevent it from happening again. In this article, we'll go through the most common reasons for a tripped 200 amp breaker, and provide tips for preventing it in the future.

Overloaded Circuit

One of the most common reasons for a tripped breaker is an overloaded circuit. This occurs when too many appliances or devices are being used on the same circuit, causing the circuit to become overloaded and trip the breaker. To prevent this, make sure to distribute your appliances and devices evenly among the circuits in your home.

Common appliances and their average amperage

Appliance Amperage Average Wattage
Refrigerator 2-6 amps 600-1800 watts
Dishwasher 4-12 amps 1000-3600 watts
Oven/Range 30-50 amps 9000-15000 watts
Air Conditioner (window unit) 7-15 amps 2100-4500 watts
Washing machine 8-15 amps 2400-4500 watts
Clothes Dryer 30-50 amps 9000-15000 watts
Microwave 10-15 amps 3000-4500 watts
Electric Water Heater 30-50 amps 9000-15000 watts
Electric Furnace 30-50 amps 9000-50000 watts
Electric Space Heater 12-15 amps 3600-4500 watts
Computer and peripherals 3-7 amps 900-2100 watts
TV 1-4 amps 100-400 watts
DVD player 1-3 amps 100-300 watts
Gaming console 2-6 amps 600-1800 watts
Light Bulbs 0.1-0.5 amps 10-50 watts

Short Circuit

Another common cause of a tripped breaker is a short circuit. This occurs when there is a fault in the wiring, causing a direct connection between the hot and neutral wires. This can cause a large amount of current to flow through the circuit, tripping the breaker. To prevent a short circuit, make sure that all wiring is properly installed and maintained.

Ground Fault

A ground fault is similar to a short circuit, but it occurs when there is a fault between the hot wire and the ground wire. This can cause a tripped breaker and can be dangerous, as it can lead to electrocution. To prevent a ground fault, make sure that all wiring is properly installed and maintained, and that all appliances and devices are properly grounded.

High-Current Devices

High-current devices, such as air conditioners and electric ovens, can cause a tripped breaker if they're not connected to a dedicated circuit. To prevent this, make sure that these high-current devices are connected to a dedicated circuit that is rated for the amount of current they require.

Weather-Related Issues

Weather-related issues, such as lightning strikes or power surges, can cause a tripped breaker. To prevent this, make sure that your home's electrical system is properly grounded and that you have surge protectors installed on all of your appliances and devices.

Old or Outdated Electrical Panel

An old or outdated electrical panel can cause a tripped breaker. As your home ages, the electrical system may become outdated, and the electrical panel may not be able to handle the current load. To prevent this, consider upgrading your electrical panel to a newer one that is better equipped to handle the current load.

Loose Connections

Loose connections between the wires and the breaker can cause a tripped breaker. To prevent this, make sure that all connections are tight and secure.

Faulty Breaker

A faulty breaker can cause a tripped breaker. This can happen if the breaker is worn out or if there is a manufacturing defect. To prevent this, make sure that all of your breakers are in good working condition, and consider replacing any that are worn out or malfunctioning.

Pests

Pests, such as mice and squirrels, can cause a tripped breaker by gnawing on wires. To prevent this, make sure that your home is properly sealed to prevent pests from getting inside, and consider using pest-repellent products around the exterior of your home.

Improperly Sized Breaker:

Lastly, an improperly sized breaker can cause a tripped breaker. If the breaker is not rated for the amount of current that is flowing through the circuit, it can become overloaded and trip. To prevent this, make sure that your breakers are the correct size for the circuits they are protecting. If you are unsure about the size of your breakers, consult with a licensed electrician for guidance.

Tools/equipment and their average cost

Tool/Equipment Description Estimated Cost
Voltage tester A tool used to test for voltage in wires and circuits. $10 - $40
Multimeter A tool used to measure voltage, current, and resistance. $15 - $50
Circuit breaker finder A tool used to locate the specific circuit breaker that corresponds to a specific electrical circuit. $20 - $40
Screwdriver A tool used to remove and replace electrical panel covers and tighten connections. $5 - $20
Wire stripper A tool used to strip the insulation from wires. $5 - $15
Fish tape A tool used to guide wires through wall and ceiling cavities. $10 - $30
Circuit breaker lock-out kit A tool used to lock out and tag a breaker to prevent it from being turned on while maintenance or repairs are being done. $20 - $50
Extension cord A cord used to extend the reach of power tools. $10 - $30
GFCI receptacle tester A tool used to test Ground Fault Circuit Interrupter (GFCI) outlets to ensure they are functioning properly. $10 - $20

Types of electrical panels and their pros and cons

Type of Electrical Panel Pros Cons
Circuit breaker panel Provides protection against overloading and short-circuiting, easy to upgrade and add new circuits, widely available and relatively inexpensive. Can take up a lot of space, older models may not be compatible with modern appliances and devices, not suitable for large power demands.
Subpanel Provides additional circuits for heavy loads, can be easily added to existing electrical systems. Can be costly to install, may require additional wiring and conduit, may not offer the same level of protection as a main circuit breaker panel.
Fused panel Provides protection against overloading, easy to upgrade and add new circuits, can be less expensive than a circuit breaker panel. Not suitable for large power demands, fuses can be difficult to find and replace, may not provide as much protection against short-circuiting.
Generator panel Can provide power during power outages, can be connected to a generator or backup power source. Can be expensive to install, may require additional wiring and conduit, may not provide the same level of protection as a main circuit breaker panel.
Smart panel Provides remote monitoring and control of electrical usage, can provide alerts for potential issues. Can be expensive to install, may require additional wiring and conduit, may not provide the same level of protection as a main circuit breaker panel.

Subscribe

Stay updated with our newsletter


Images provided by: depositphotos.com

Conclusion

A tripped 200 amp breaker can be caused by a variety of factors, from overloaded circuits to weather-related issues. By understanding the common causes of a tripped breaker and taking steps to prevent them, you can help ensure that your electrical system is safe and reliable. Remember, if you are unsure about any aspect of your electrical system, it is best to consult with a licensed electrician for guidance.
