Wire size for 40 amp breaker?

What size wire for 40 amp breaker?

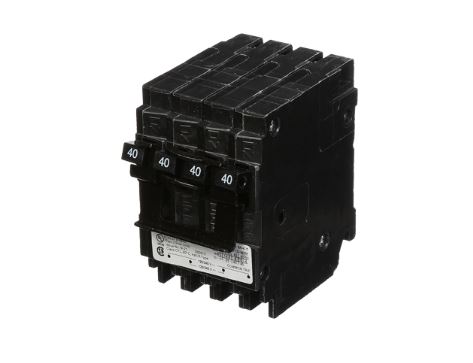

40 amp breaker

The required wire size for a 40 amp breaker is 8-gauge wire. Using the correct wire size is essential in making sure that the breaker is protected from too much voltage and also making sure that it does trip when there is an overload. It would be very annoying to use a wire size smaller than needed because then you would get popping sounds when using it on something like a welder, which can cause damage to yourself and your appliances as well. If the wire is 8-gauge or larger (but does not have armored cable markings), this will cover the needs for most ordinary residential usage such as dryers and space heaters.

8-gauge wires are generally made of copper, but they can be made from aluminum or other materials as well. There are many different types of wire for various applications. These include:

  • Cables with rubber insulation
  • These are generally used for wiring of transformers and plugs as well as in commercial buildings.

  • Bare copper wire
  • This is often used in residential applications such as in the walls or ceilings due to its flexibility.

  • Wire carrying a current that goes into an outlet
  • The amount of current will be indicated by the thickness of the cable. As a general rule of thumb it is best to use 14 gauge wire for 15A circuits, 12 gauge wire for 20A circuits and 10-gauge wire for 30A circuits.

  • Wire that goes into a breaker box
  • This should be larger than the wires going out from the box. The general rule of thumb is to use 4/0 AWG wire (American Wire Gauge) for 100 amps while 6/3 or better yet 4/4 would be needed for 200 amps.

The length of the cable determines its resistance as well as how quickly heat will travel through it; thus longer cables will need thicker gauges if rated right under the maximum load of the circuit. Based on this one can get an idea about what kind and size cable

WHAT WILL HAPPEN WITH THE WRONG WIRE SIZE?

If you use the wrong wire size, it will cause your appliance to work harder, and as a result it will pull too many amps from the electrical system. It can even lead to an electrical fire if not taken care of in time. The wires may overheat which could cause them to melt or start a fire destroying your appliances or worse, your home.

A certified electrician should be put in charge of doing the wiring as he or she is familiar with all the safety requirements and knows what to do in case of any emergency.

As a homeowner, you can choose to set up your electrical system by yourself but if anything goes wrong it's best to get assistance from someone who is well experienced with wiring. The most important thing is that you check the wires regularly so that they don't overheat and lead to fire or shock hazards.

  • Performance Drops
  • There will be performance drops if you choose too small of a wire size for the load being used. This is because when you use a wire that's too small for its job, it will overheat and fail to carry enough power to your appliances. The result may be an overload of specific items in the circuit or even an outage that could trigger fire or other serious problems.

  • Start a fire
  • A fire might be started if you use a smaller wire than is required. For example, if you have an electrical outlet wired for 15 amps and you plug a high-amp appliance into it, the wire may overheat from carrying too much power and start a fire.

  • Power Outages
  • Electrical service might be interrupted because of voltage drop in wires that are overloaded by using too small of wires to support the current load. This can cause such problems as flickering lights or another outage(s).

HOW DO YOU KEEP THIS FROM HAPPENING?

To maintain optimum performance always use a wire gauge that is appropriate for the amount of current and length of wire run. Using an undersized wire can be very dangerous, especially with appliances such as air conditioners, stoves, water heaters, electric dryer units etc., because they have a certain amount of rated load that must be met or exceeded.

ASPECTS TO CONSIDER WHEN CHOOSING WIRE SIZE

  • Material used for wire
  • The wire material will play a role in choosing a wire gauge. Since copper is the most common used for household wiring, it is considered safe and provides efficiency as well as cost effectiveness. All other materials have their own unique characteristics that affect the size of wire needed to carry adequate current without overheating at high resistance levels.

  • Bends
  • To prevent the wires from being damaged during installation, all bends must be performed using either 90 degree or 45 degree bends. This will increase the life of the wires and also prevent fire hazards.

  • Insulation thickness
  • The thickness of the insulation can affect how much load can be carried by a particular gauge of wire. Thicker insulations require bigger diameter conductors while thinner ones allow smaller conductors to carry more power loads. You need to know what your insulation will be to properly size your wire.

  • Wire run
  • This is the length you plan on running your wire. The rule of thumb is to go up one size larger if you plan on running the recommended wire size over 100 feet. This means that if you are planning on running 8-gauage wire for a 40 amp breaker over 100 feet, you should go to 6-gauge wire. This is because you will lose voltage over that distance which will reduce the amps available.

Can I use a 40 amp breaker on 10 gauge wire?

No, you should never use a 40 amp breaker on 10-gauge wire. If you do, the load will not be properly balanced and could lead to problems such as burnt wires or a fire. You need to use at least 8 gauge wire for your electrical panel box.

Can you use a 40 amp breaker on 6 gauge wire?

Yes, you can use a 40 amp breaker on 6-gauge wire. If you do, the load will be properly balanced and should work without issues.

What is the purpose of a stub out?

A stub out is a metal or plastic piece that you connect to the end of a circuit breaker. You use this to extend an electrical wire on your home's exterior so that it is not running through holes in walls and ceilings.

What size wire do I need for 40 amps?

You will need a minimum of 8 gauge wire for 40 amps. That way, you will have protection from overheating or possible electrical fires.

What gauge wire do I need for a 30 amp breaker?

You will want to use 10-gauge wire or larger for a 30 amp breaker. This ensures that there is enough copper in the wire so that it doesn't overheat or, worse, have a fire start at the outlet.

Amperage RatingAluminumCopper
20 amp#12 AWG#12 AWG
30 amp#10 AWG#10 AWG
40 amp#6 AWG#8 AWG
50 amp#4 AWG#6 AWG
60 amp#3 AWG#4 AWG

40 AMP WIRE SIZE

To use 40 amps, you will need to use a wire gauge of 8 or better. Depending on the length of the wire run, you will need to use a thicker gauge.

30 AMP WIRE SIZE

To use 30 amps, you will need to use a wire gauge of 10 or better. Depending on the length of the wire run, you will need to use a thicker gauge to safely use said 30 amps.

20 AMP WIRE SIZE

A wire size of 10 or 12 or better is required for 20 amp circuits, depending on the length of the wire run to be used.

15 AMP WIRE SIZE

A 15-amp circuit requires a wire gauge of 14. If you want to use 15 amps, then a 14 gauge wire must be installed. The wiring distance will also have an effect, so the more wires and outlets that are strung together within this distance (as noted here - up to 100 ft.), the thicker the wire needed should be.

How to read cable labels

Reading cable labels is perhaps the most confusing thing that homeowners have to do. It is even worse when larger wires are involved. However, once you understand a few concepts, it actually becomes quite easy.

  1. Firstly, you will see the AWG rating on the wire. For instance 8 gauge wire will read something like "8."
  2. There will be an additional number like 8/2 or 8-2. This number tells you how much service wires are located in a cable.
  3. A "w/G" or "G" signifies that there's a ground wire.


Conclusion

When it comes to wiring, size matters. The required wire size for a 40 amp breaker is 8-gauge wire and if you use anything smaller than this then there will be popping sounds when the electricity goes through it. This can cause damage not just to your welder but also any appliances that are plugged into those outlets as well, which makes using incorrect wires an incredibly annoying experience. If you're having trouble finding out what the correct wire size should be or how many feet of cable you'll need, feel free to contact us. one of our experts can help walk you through getting everything set up correctly.
