Have you ever thought about wiring your own 30 amp RV outlet before? Whether it be before going camping for the summer or camping in your backyard? Your RV is going to have power needs whether you are going to be staying at home or going on short camping trips. It is always best to keep your Rv batteries as healthy and charged as possible.

You will have air conditioning on-hand, your refrigerator will be running, and all your tools, appliances, or equipment will continue to run smoothly. Below you will learn exactly what needs to be done in order to wire your own 30 amp rv outlet.

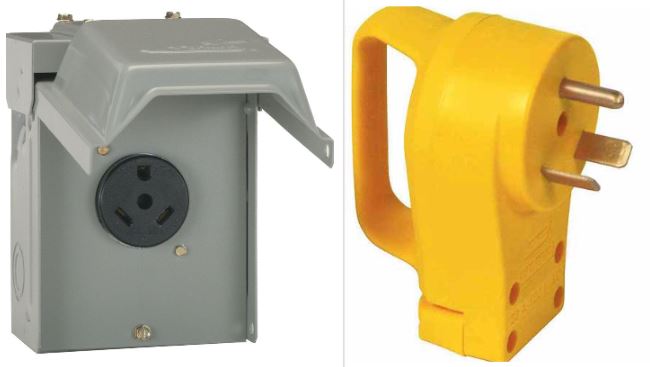

What does a 30 Amp Rv Plug look like?

A 30 amp plug is a simple plug. It has three prongs, one for ground, one for hot/live, and the third and last one is the neutral.

30 amp rv plug

What does a 30 amp outlet look like?

A 30 amp outlet is simple. It provides 3 slots for you to insert the 3 prongs on a 30 amp plug.

30 amp outlet

What is a 30 amp rv service?

In the Rv world, a 30-amp power service is defined as an outlet that offers 120 volts and outputs power through a three-prong male cable and a 30-amp breaker. The 30-amp Recreational Vehicle plug is usually referred to as the RV-30. The electrical cap reveals a U-shaped pin and two flat pins that are angled.

Wiring a 30 amp rv service is straightforward, and can be easily done by following the correct color codes for your connections and by using the proper wire size or sizes.

Things you will need to wire your 30 amp rv service

You just learned what a 30 amp rv service is, now we will go over all the materials that are needed to complete the job.

  • 10 gauge wire (Recommended wire size).
  • Electrical safety box
  • Brand new breaker (Recommended to use a new breaker)
  • A cover plate for your outlet (Protect against the elements)
  • Staples to protect your 10 gauge wires

What size wire for 30 amp rv service?

To safely wire a 30 amp service, you will need a wire gauge of 10. Be sure to double check the 10 gauge wire before you install it.

How to wire a 30 amp rv service?

With all the materials on-hand, it is now time to install all the new wire you had laying around or the ones you might have purchased between the 30-amp outlet and the breaker. If you have never pulled any type of cable in the past, I suggest pulling the wires slowly in order to avoid any rips. Any rips made while pulling these wires will require a redo.

Follow these steps to wire your 30 amp service

Follow these steps in order to safely wire your 30 amp rv service.

  1. Use a box cutter carefully to cut the outer portion of of your cord's jacket cover. Leave a total of one inch to separate the 3 wires. Try your best not to damage any of the insulation that covers each wire.
  2. Next, using a wire stripper, remove 1/2 inch of insulation from each of the 3 wires. Twist the strands so that you will have a rope-like thread that is much more stronger than strands that have not been twisted.
  3. Try your best not to damage the brass pins when you draw them from their housing. Your main aim is to avoid trimming them.

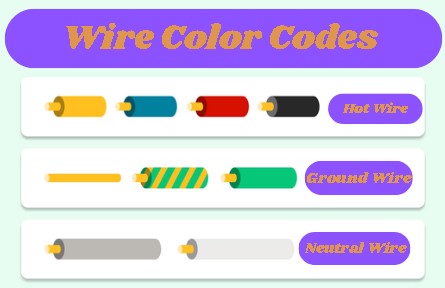

  4. The color codes and link and be sure to link each cable correctly. The hot wire is black and should be connected to the screw that is brass-colored. The white neutral wire should be placed where the silver-colored screw is. The ground wire is bare green and should be connected to the green-colored screw. If there is no green screw then connect the ground wire to the U-shaped pin.
  5. Tighten up the small straps that are located on the cord's cover jacket at the top. Be sure to secure the wires that inside the 30 amp RV plug. Do not forget this step.

Can I Plug My 30-Amp RV Cord into a 50-Amp Power Pedestal?

Yes! You can plug your 30-Amp RV Cord into a 50-Amp Power Pedestal. Some people worry that the extra power that is supplied by a 50-amp outlet will fry their Recreational Vehicle's electrical system. But, that isn't true. You can plug a 30-amp RV cable directly into a 50-amp power outlet, such as a power outlet or pedestal at any campground that offers them. This is accomplished by using the correct 30 amp to 50 amp adapter. Use the female end of the adapter to plug into your Recreational Vehicle cord, and you should plug the male end into the 50 amp rv receptacle.

30 Amp to 50 Amp adapter

30 amp to 50 amp adapter

Make your rv able to handle 50 amps with this 30 Amp to 50 Amp adapter. It's perfect for the whole house so you can cook and refrigerate while on the road. The handles make unplugging easier, and it is also designed to fit tightly so that your plug will not fall out.

Some of my favorite 30 amp extension cords and accessories

Below are some of my favorite 30 amp accessories to have on hand. I especially love the Camco Extension Cord.

  • Conntek 14364 30 Amp RV Extension Cord, 50 Feet for RV

  • 30 amp extension cord

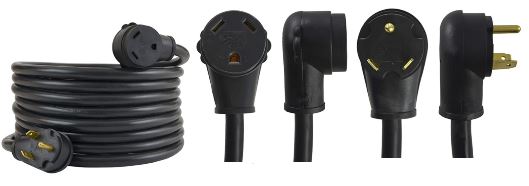

    You get an extension cord that is 50 feet and is rated for 30 amps and one option has the PowerGrip Handles. Good for reaching that portable electric saw you have laying around or any other electronics you might want to plug in from a distance.

  • Miady 30 Amp 125 Volt RV Power Outlet Box

  • Miady 30 Amp 125 Volt RV Power Outlet Box

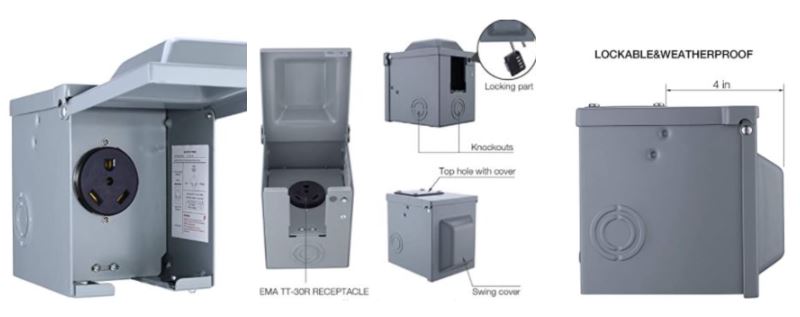

    This is a 30 amp Rv power outlet box. It is waterproof, so you don't have to worry about hooking it up outside in the elements.

  • 10-Gauge Bulk Spool, 100-Feet, Black

  • 10-Gauge wire

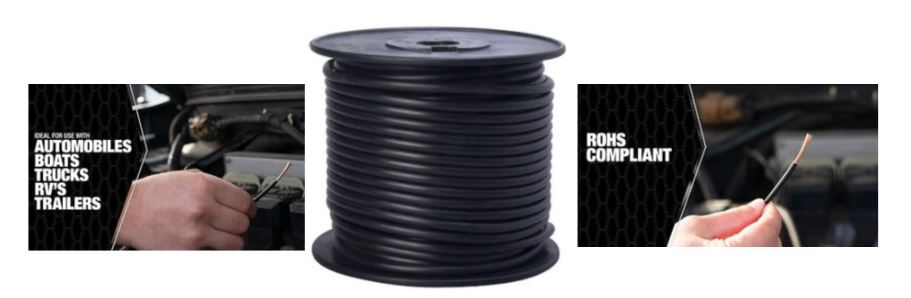

    Get some of this 10 gauge wire for your next project. You get a total of 100 feet of 10 gauge wire at a good price. The Pvc outer-jacket is oil, water, abrasion, and chemical resistant. This 10 gauge wire can be used in multiple different projects such as when you do diy projects on your car, boat, trucks, or your rv.

Can I Plug My 50-Amp RV Cord into a 30-Amp Power Pedestal?

Yes! You can plug your 50-amp rv cord into a 30-amp power pedestal. The same procedures and precautions needs to be taken just like plugging a 30-amp plug into a 50-amp pedestal.

Can you Plug your RV into a 15-Amp Home Electric Outlet?

Yes, you can plug your rv into a 15 amp outlet at your home. The type of charge that will be given to your rv will only be a trickle type charge. A trickle type charge is given to batteries to keep them healthy while they are not being used.

How to wire a 30 Amp Rv Plug?

It is very easy to wire a 30 amp rv plug. All you need to do is follow the correct steps to stay safe. There are three prongs on a 30 amp rv plug, there is a 120 Volt wire, a hot wire, and a ground wire.

  • Wire the live/positive/hot wire to the live prong on the plug. This wire is usually red.
  • Wire the neutral wire to the neutral prong on the plug. This wire is usually white or grey or black in the US or Blue or black in the UK.
  • The ground wire should be wired to the ground prong on the plug. The ground wire is usually green.

Wire size and gauge chart

Wire Gauge Amperage (Up To)
14-gauge wire 15 amps
12-gauge wire 20 amps
10-gauge wire 30 amps
8-gauge wire 40 amps
6-gauge wire 55 amps
4-gauge wire 70 amps
3-gauge wire 85 amps
2-gauge wire 95 amps

These ratings are for copper NM encased cables, yet there are circumstances where these amperage scores may differ. For instance, there is light weight aluminum circuitry in some houses, and also light weight aluminum cords have their very own ampacity-carrying capability. Light weight aluminum electrical wiring was commonly made use of, yet due to the fact that it was discovered that light weight aluminum expanded more under load, it usually loosened up cable links and also in some cases triggered electric fires.

What is trickle charging?

Trickle charging is the method of charging a battery that is fully charged at a rate that is equal to its self-discharge rate. This allows the battery to stay in tip-top shape while it is not being used. If there is however any type of current being pulled from the battery then trickle charging will stop. Trickle charging will stop because batteries usually needs upwards 1 or 2 extra volts to keep fully charged while under load. What this means is that with cars that use a 12 volt battery to run lights and all other electronics, a charging rate of up to 14.7 volt is needed to keep the battery fully charged.

What size breaker do I need for a 30 amp RV plug?

A 30 amp Recreational Vehicle plug must actually be used with a 30 amp breaker. You could als plug it into a 15 or 20 amp breaker, but you run the risk of damaging your RV if you utilize more than the ranked power the circuit/outlet has been designed for.

Is a 30 amp RV plug 120 or 220?

There are three prongs on a 30 amp plug, there is a neutral wire, a 120 volt hot wire, and a ground wire. and is generally utilized on Recreational vehicles that have low load requirements.

How many watts does it take to run a 30 amp RV?

3600 watts are needed to run a 30 amp rv. To calculate how many watts is needed to run a 30 amp rv, you should use the formula of 30 amp X 120 Volts = 3600 watts.

What do I need to plug my 30 amp RV into my house?

The initial step is to ensure you have whatever you require. If your rv is a 30 amp rv, you'll require a 15a male adapter that is connected through a 30a female.

Can 12 gauge wire handle 30 amps?

No, you should never try to use a 12 gauge wire on a 30 amp circuit. A 12 gauge wire is meant to handle no more than 20 amps.

How far can 10 gauge wire carry 30 amps?

30 amps carried over a 10 gauge wire is not meant to be run over far distances. If you plan on going over 150 feet, you should upgrade the wire size from 10 gauge to 8 gauge.

Which Circuit Breaker Should I Use For My 30 Amp Cord?

The correct circuit breaker is one that is meant to handle 30 amps.

What gauge wire for 30 amp breaker

The best wire to use for a 30 amp breaker is a 10 gauge wire. You will only need a better wire if you plan on running that said wire over long distances.

Some uses of wires and the gauges needed

Type of appliance Amperage Wire Gauge
Small lighting and lamp cords 10 amps 18-gauge
Light Duty Extension cords 13 amps 16-gauge
Lamps, Light fixtures, lighting circuits 15 amps 14-gauge
Kitchen, outdoor receptacles, and bathroom (outlets); 120-volt air conditioner 20 amps 12-gauge
Electric clothes dryers, electric water heaters, 240-volt window air conditioners 30 amps 10-gauge
Ranges and Cooktops 40-50 amps 6-gauge
Large electric heaters 60 amps 4-gauge
Conclusion

Knowing How To Wire A 30-Amp RV Outlet On Your Own is a great skill when you own an rv. Be sure to check with a professional to go over your work to ensure that everything is as it should be. It is always better to be safe than sorry.
